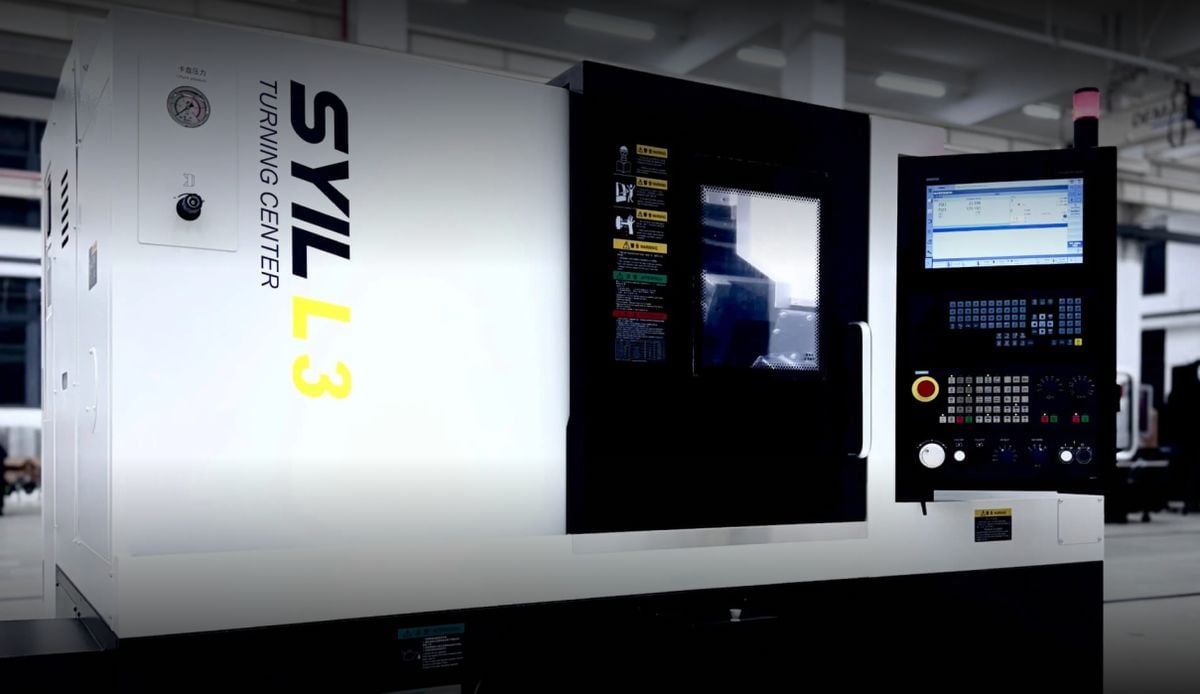

SYIL L3 CNC Lathe
High-Performance Turning
8-inch hydraulic chuck
Maximum swing diameter of ø500MM
Through-hole diameter of ø63MM
Optional Sauter servo turret
Power-driven tool speed of 5000RPM
BMT55 tool specification
Optional Y-axis

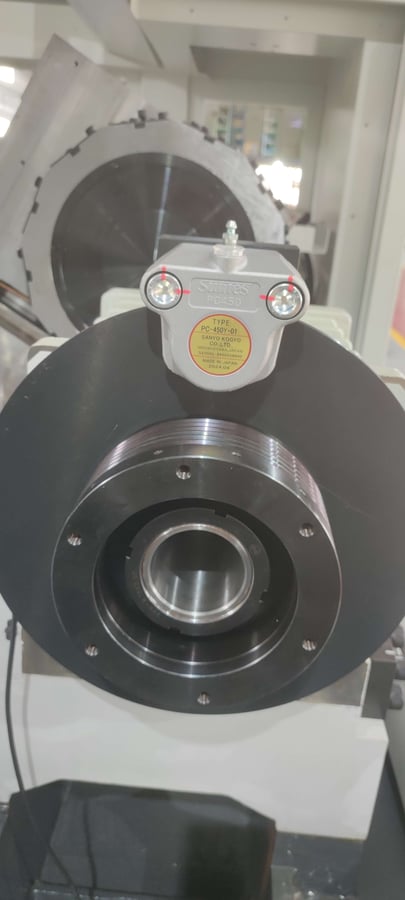

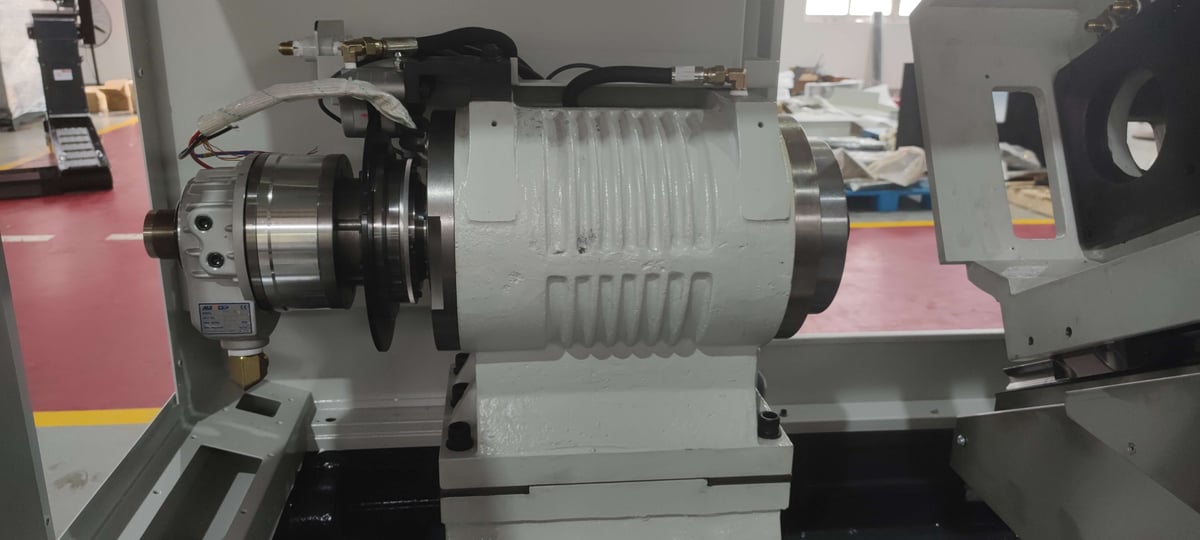

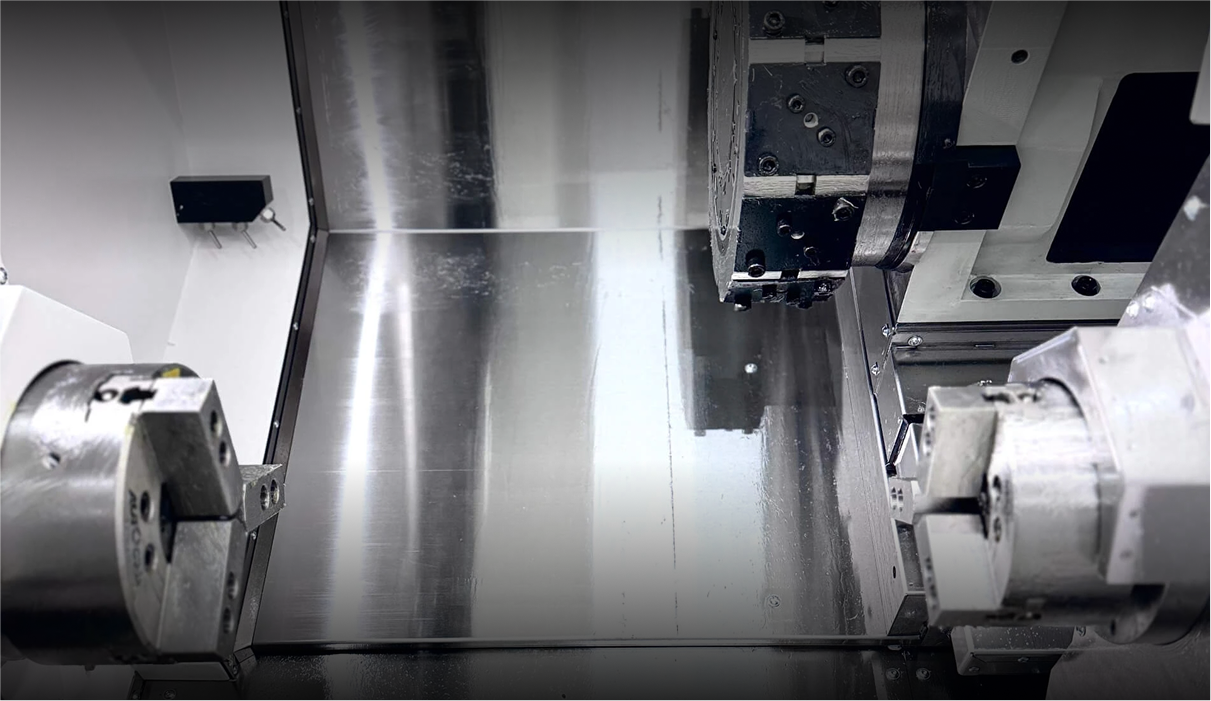

Optional sub-spindle
SYIL L3 Turning Center Packages Specs
Whether you are in the business of prototyping or small metal parts manufacturing, SYIL CNC lathes are the ideal choice for your CNC machining needs.
Specifications
Processing Capacity
Chuck size: 8 inches
Max. swing diameter over bed: ø550mm
Max. swing diameter over carriage: ø290mm
(with Y axis: 200mm)
Max. workpiece length: 500mm
(with Y axis: 530mm, with Counter Spindle: 450mm)
Max. workpiece diameter: ø380mm
Spindle
Max. speed: 4000rpm
Spindle nose: A2-6
Spindle bore diameter: ø63mm
Through spindle bore diameter: ø52mm
Spindle power: 11/15kw
Min. C-axis indexing: 0.001°
Counter Spindle
Chuck size: 6 inches
Rate speed / Max speed: 1750/6000rpm
Spindle nose: A2-5
Spindle bore diameter: ø56mm
Through spindle bore diameter: ø45mm
Spindle power: 11kw
Travels:530m
Rapid traverse:30m/min
Tool Holder
Type: Power Turret
Tools: 12
Min. Tool to Tool: 0.2 seconds
Max. Tool to Tool: 0.5 seconds
Max tool shank size: 25x25mm
Max tool shank diameter: ø40mm
Max. Live Tooling Speed: 5000rpm
Live Tooling Model: BMT55
Travels
X Rapid traverse: 30m/min
Z Rapid traverse: 30m/min
Y Rapid traverse: 15m/min
X Travels: 190+10mm
Z Travels: 550mm (with Y axis: 490+-50mm)

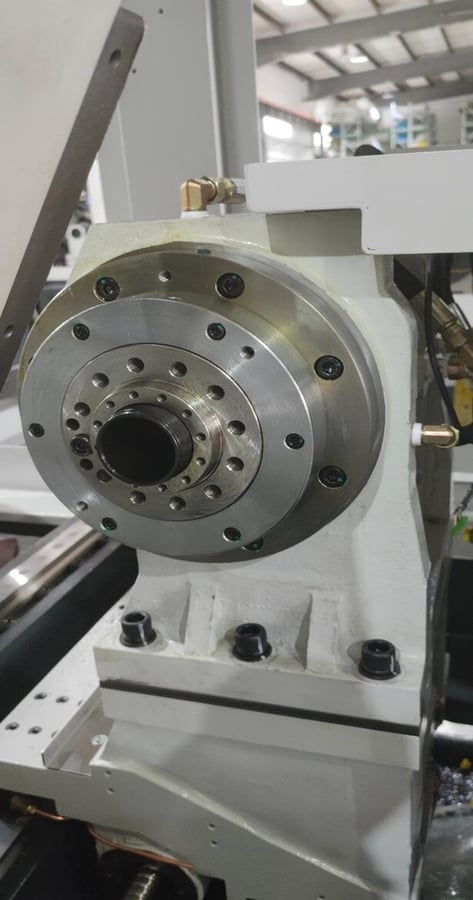

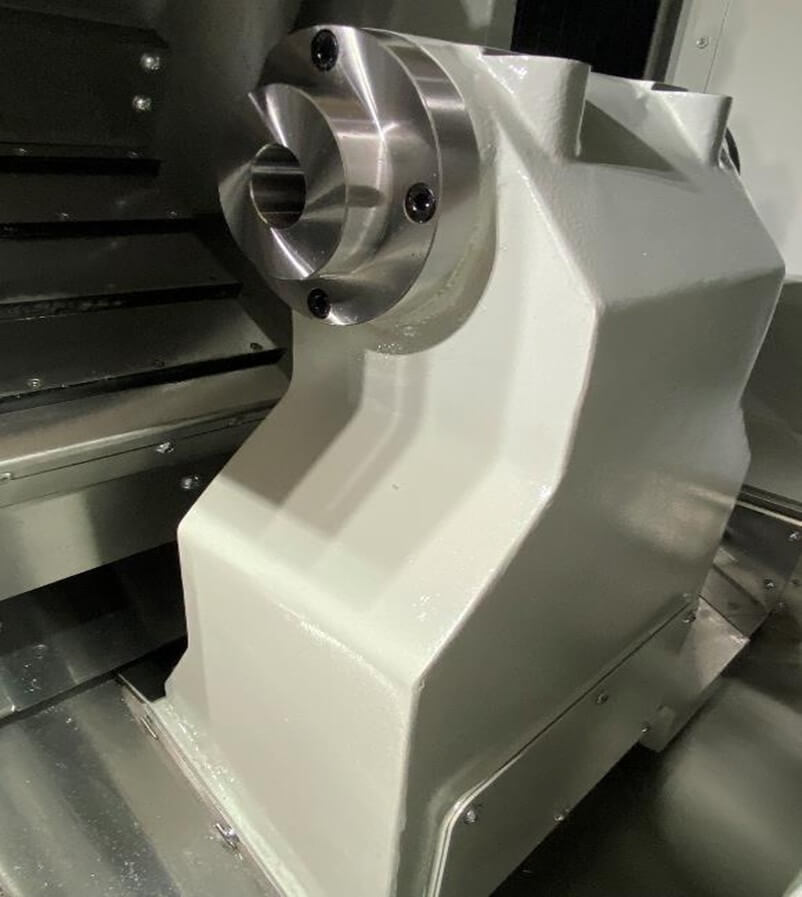

Tail Stock
Travels from Tail Stock to Chunk: 465mm (with Y axis: 500mm)
Tail Stock Rapid Traverse: 30m/min
Sleeve taper: MT4
Accuracy
Finish turning cylindrical accuracy: IT6
Finish turning parts surface: Ra0.4-1.6
Finished turning parts roundness: ≤0.003mm
Position accuracy(X): 0.005mm
Position accuracy(Z): 0.008mm
Repeat accuracy(X): 0.002mm
Repeat accuracy(Z): 0.004mm
Dimensions and Weight
Dimensions(LWH): 2500x1720x1740mm
(with Y axis: 2680x1750x1850mm, with Counter Spindle: 2680x1750x1850mm)
N.W.: 4000kg
SYIL x Siemens
The SYIL L3 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
Enhance Your Precision Machining with SYIL CNC Lathes

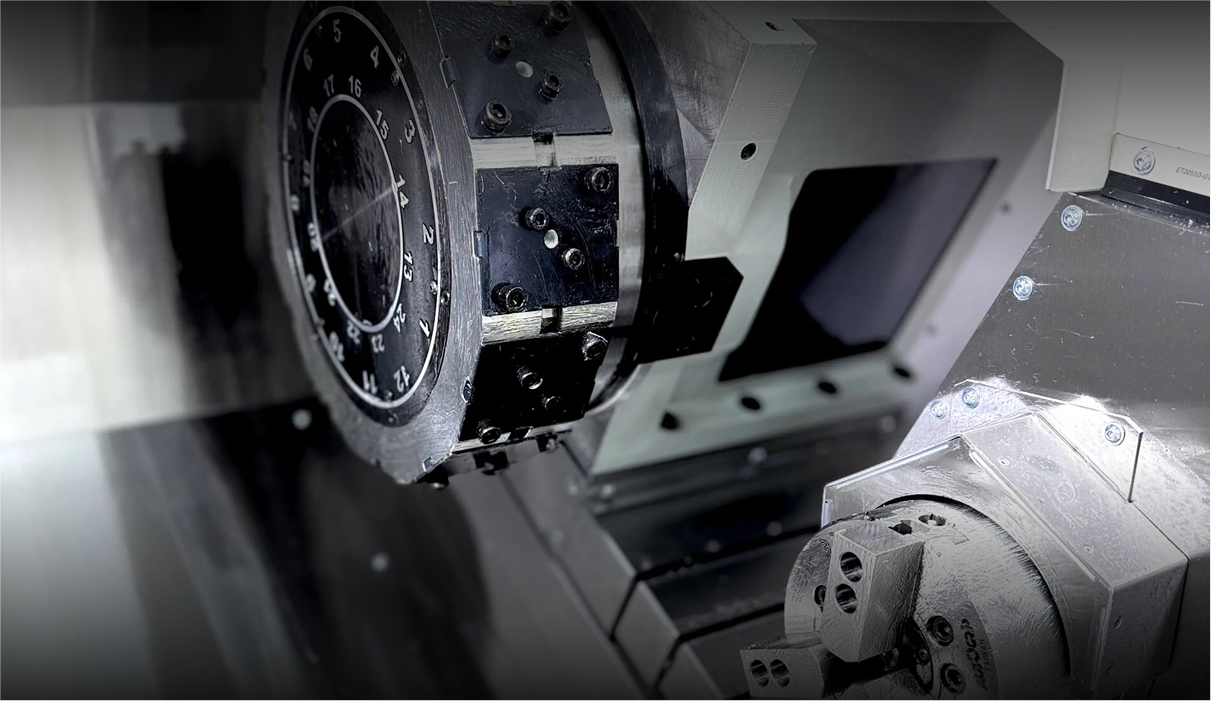

The SYIL L3 turning and milling composite machine tool features a German SAUTER power turret that greatly reduces tool changing time and improves chip rigidity. It has a compact footprint while providing a comfortable operating space and expandability.

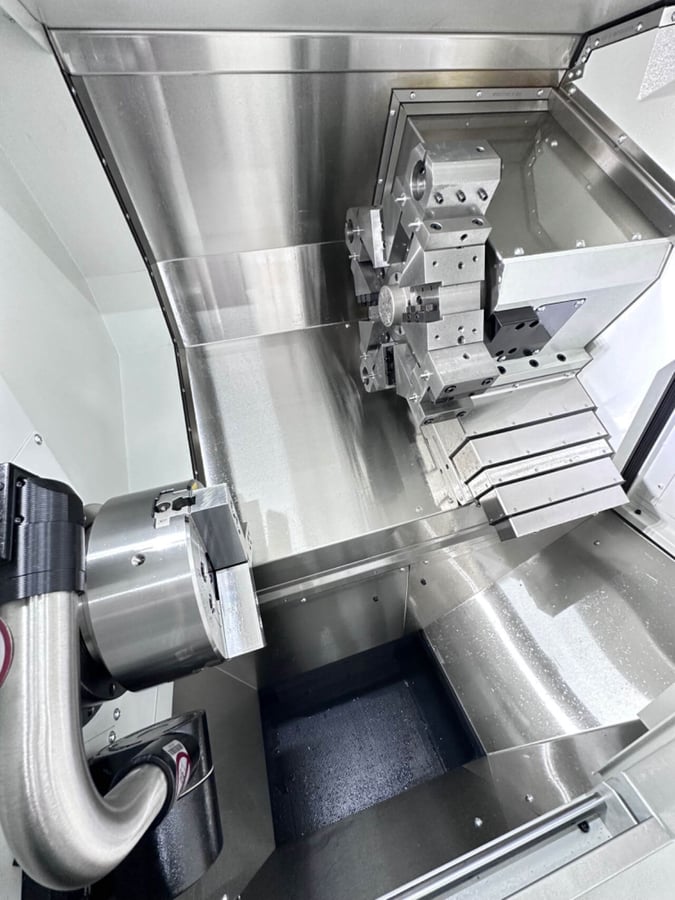

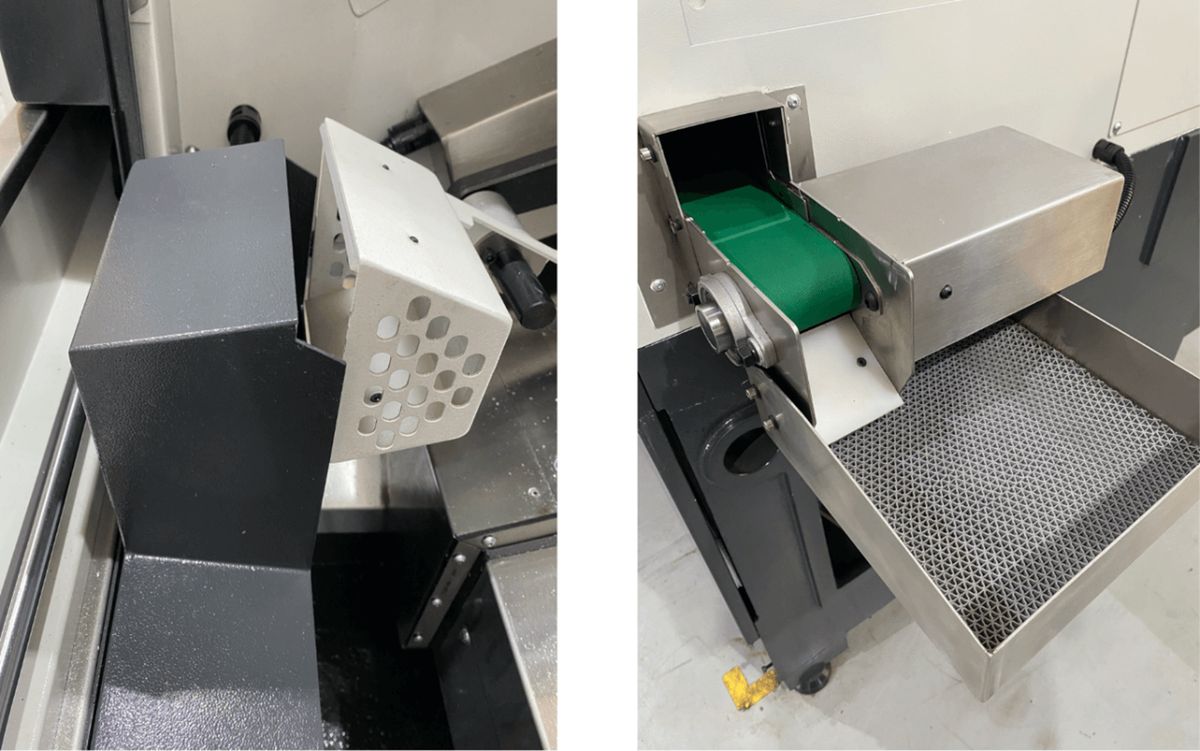

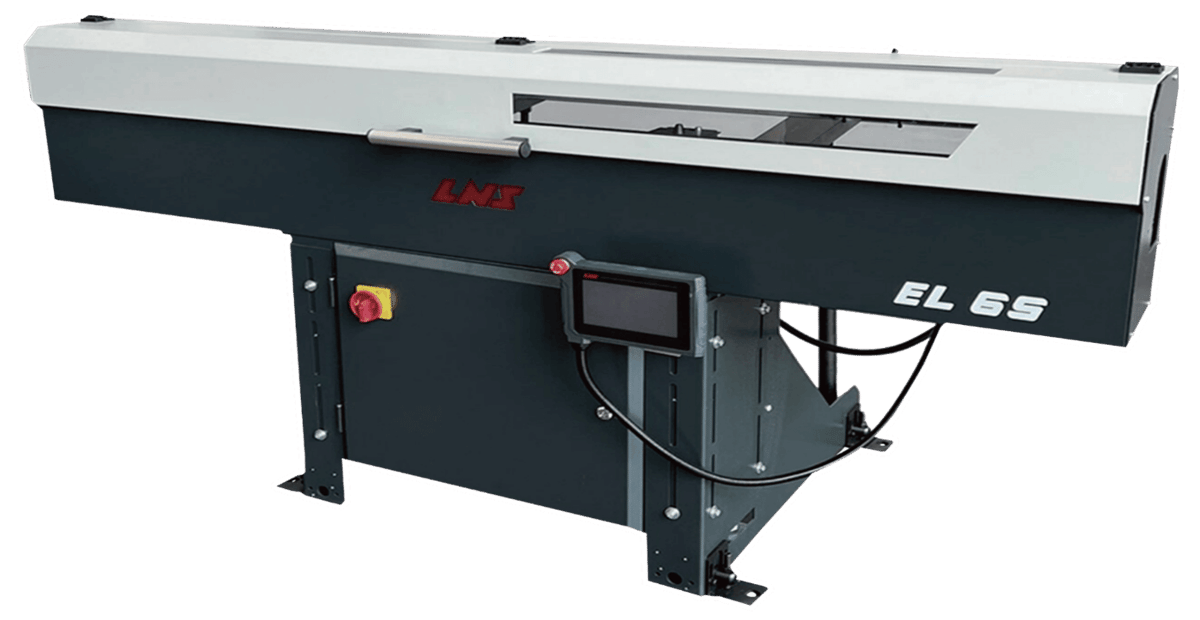

Various expansion function interfaces are reserved for achieving automated processing, such as automatic loading and unloading robots, automatic doors, automatic feeding, tool setters, and online workpiece inspection.
Modular design with powerful expandable functions
Compact machine layout for flexible production line combination
Optional mineral casting bed structure
High rigidity and good thermal stability
Direct-drive servo system with high-precision linear guide
Fully enclosed work area with stainless steel protective plates
User-friendly ergonomic design for operation and loading/Unloading

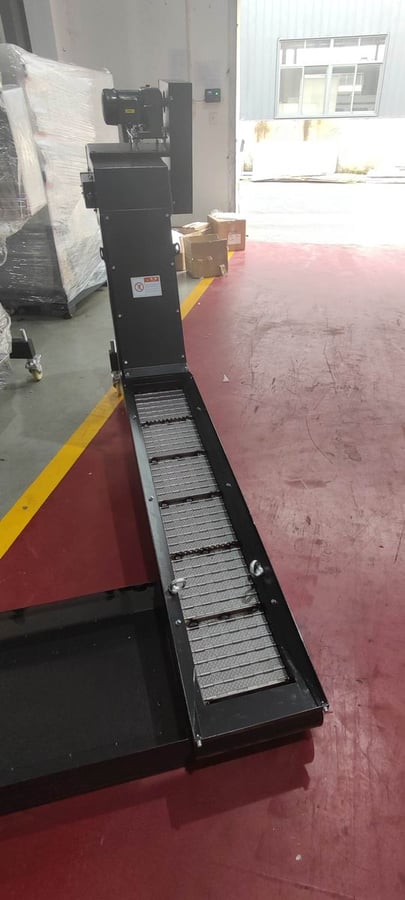

Easy chip removal design
Easy access to each Unit for maintenance
Expandable and customizable automation system

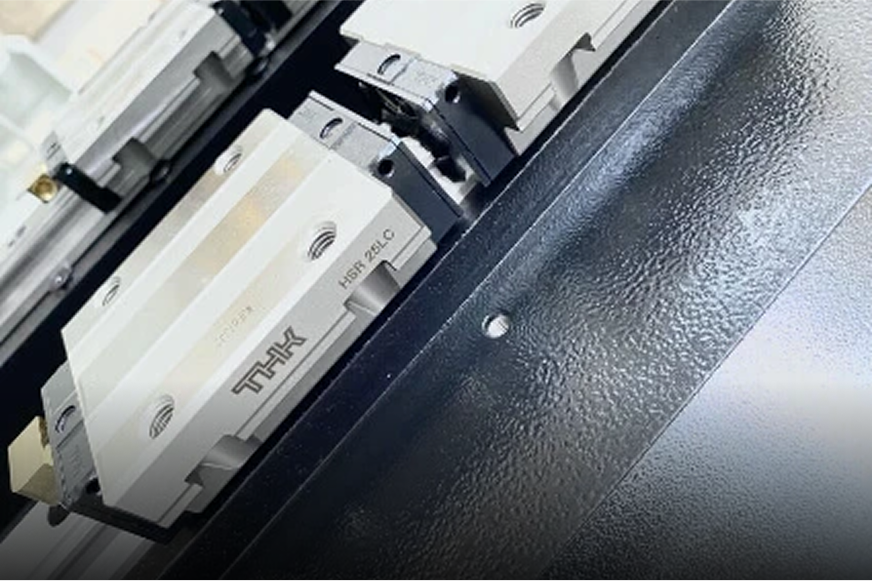

THK
High-precision Ball screws and linear guides
Optional SAUTER servo turret
5000rpm power tool spindle speed

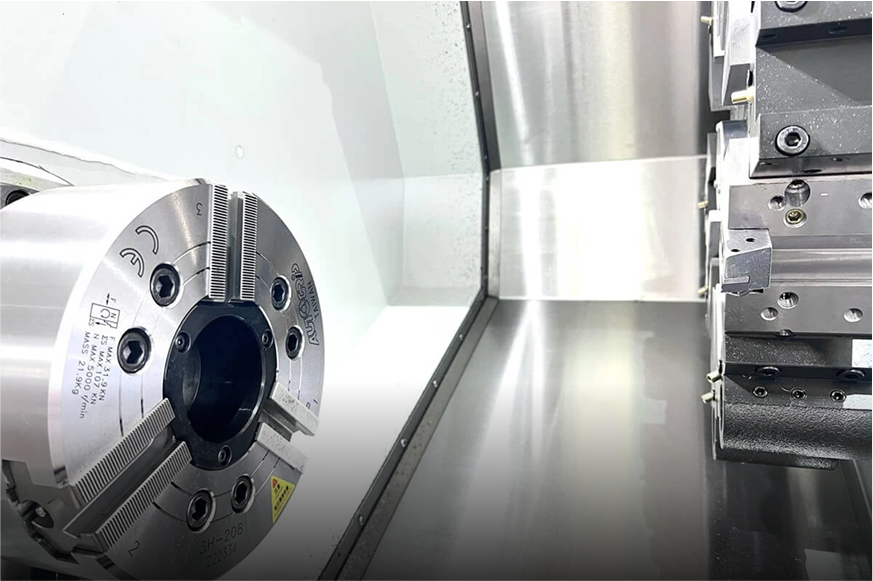

High-speed servo spindle unit
Maximum spindle speed 4500rpm
What Are the Advantages of Using a SYIL CNC Lathe?
When it comes to efficiency, the SYIL Turning Centers are in a league of their own. These machines are designed to deliver exceptional results every time, allowing you to streamline your production process and maximize output.
One of the key advantages of SYIL lathes is their user-friendly interface. The intuitive control system allows operators to easily program and operate the machines, reducing setup time and increasing productivity. The integrated control panel is designed to be simple and straightforward, providing all the necessary information and functions at your fingertips.
SYIL lathes also offer a wide range of customization options to suit your specific needs. From spindle options to tooling configurations, you can tailor the machine to meet the unique requirements of your small parts manufacturing process. With SYIL, you have the flexibility to adapt and optimize your production to achieve maximum efficiency.
In addition to their exceptional performance, SYIL lathes are known for their durability and reliability. Built with high-quality materials and precision engineering, these machines are built to last. Whether you are running a small production line or a high-volume manufacturing facility, SYIL lathes can handle the demands of your operation with ease.
With SYIL Turning Centers, you can achieve unparalleled efficiency in your CNC machining operations. These machines combine advanced technology, user-friendly interface, and customizable options to deliver superior performance and productivity. Invest in a SYIL lathe today and experience the difference it can make in your small parts manufacturing process.
What Are the Advantages of Using a SYIL CNC Lathe?
The SYIL CNC Lathe, specifically the L3, offers numerous advantages for those in need of precision turning and machining. Here are some key benefits of using a SYIL CNC Lathe:
- Exceptional Precision: SYIL CNC Lathes are known for their high precision capabilities, ensuring accurate and consistent machining of metal parts. This precision is essential for industries like prototyping and small metal parts manufacturing, where accuracy is paramount.
- Versatility: The SYIL CNC Lathes are incredibly versatile, capable of handling a wide range of turning operations. Whether you need to create complex shapes, threads, or bore holes, the SYIL CNC Lathe can handle it all with ease.
- Efficient Production: With advanced automation features, the SYIL CNC Lathe helps streamline production processes, improving efficiency and reducing downtime. Its intuitive control system allows for quick setup and programming, enabling faster turnaround times and increased productivity.
- Durability and Reliability: SYIL machines are renowned for their durability and reliability. Built with high-quality components, these lathes are designed to withstand heavy usage and provide consistent performance over extended periods. This ensures long-term reliability and minimizes maintenance requirements.
