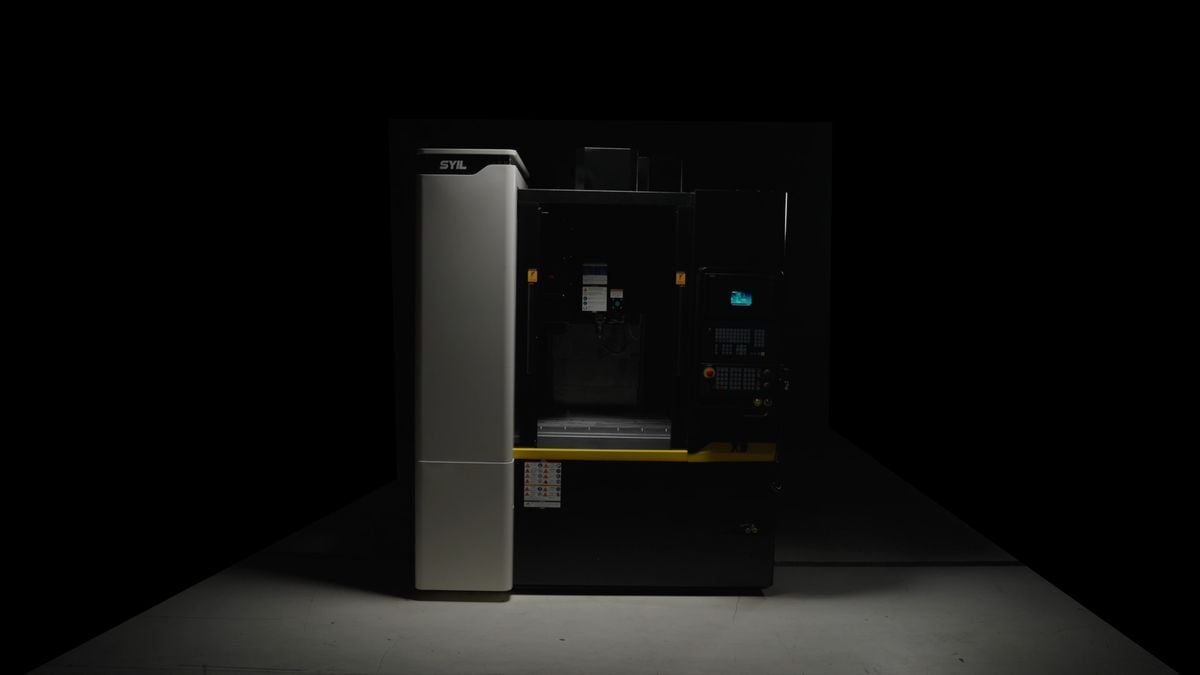

SYIL X9 | CNC Milling Machine | Epoxy Granite Mineral Casting

SYIL X9 Vertical Mill
First-Class Components and Solid Construction
760x500x500 mm axis travels
24-unit high-speed servo tool changer
10,000 rpm BT40 spindle
SCHNEEBERGER mineral casting

REQUEST A QUOTE
SYIL X9 Technical Data
First-Class Components and Solid Construction

Specifications

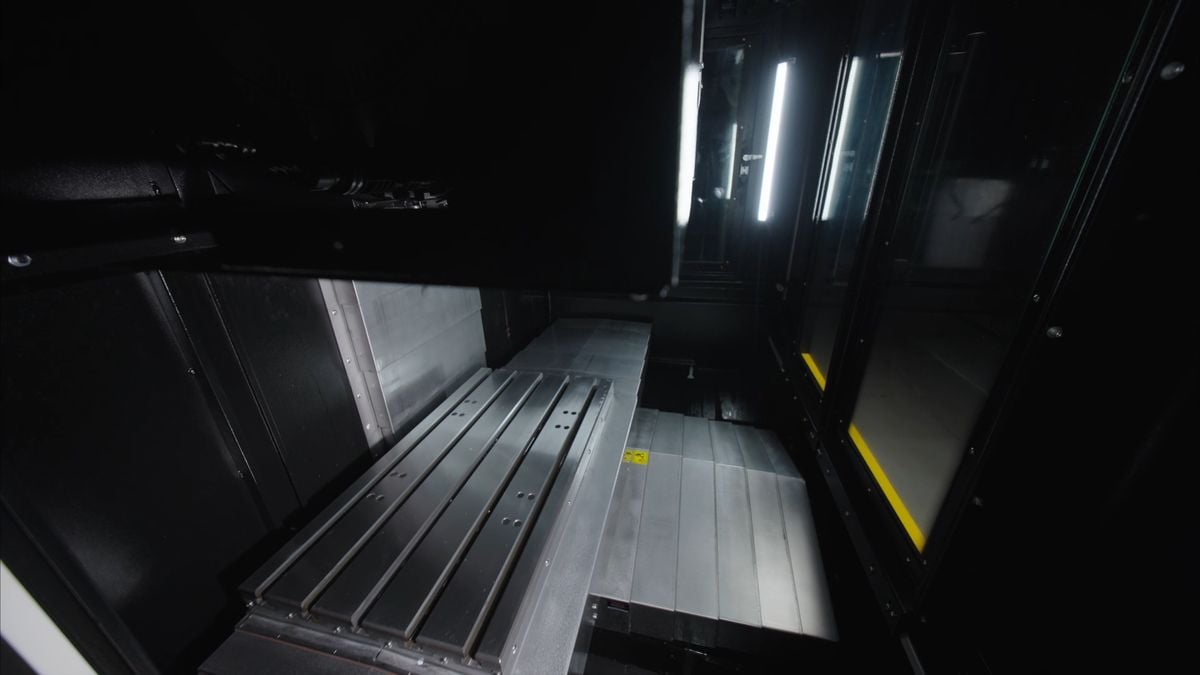

Table

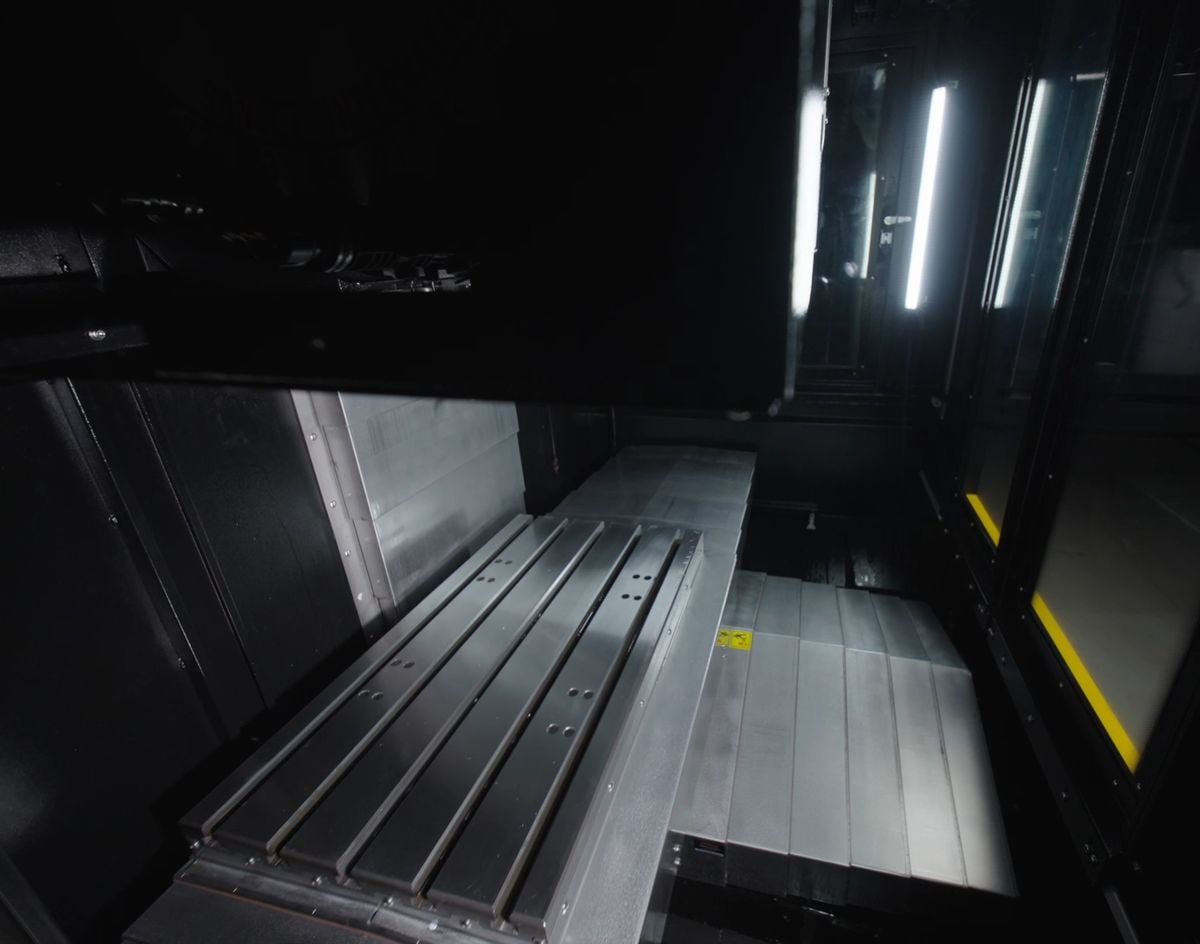

Working surface: 860x500 mm
T-Slots (Number x Size x Distance): 18x5x100 mm
Max. table load: 500 kg

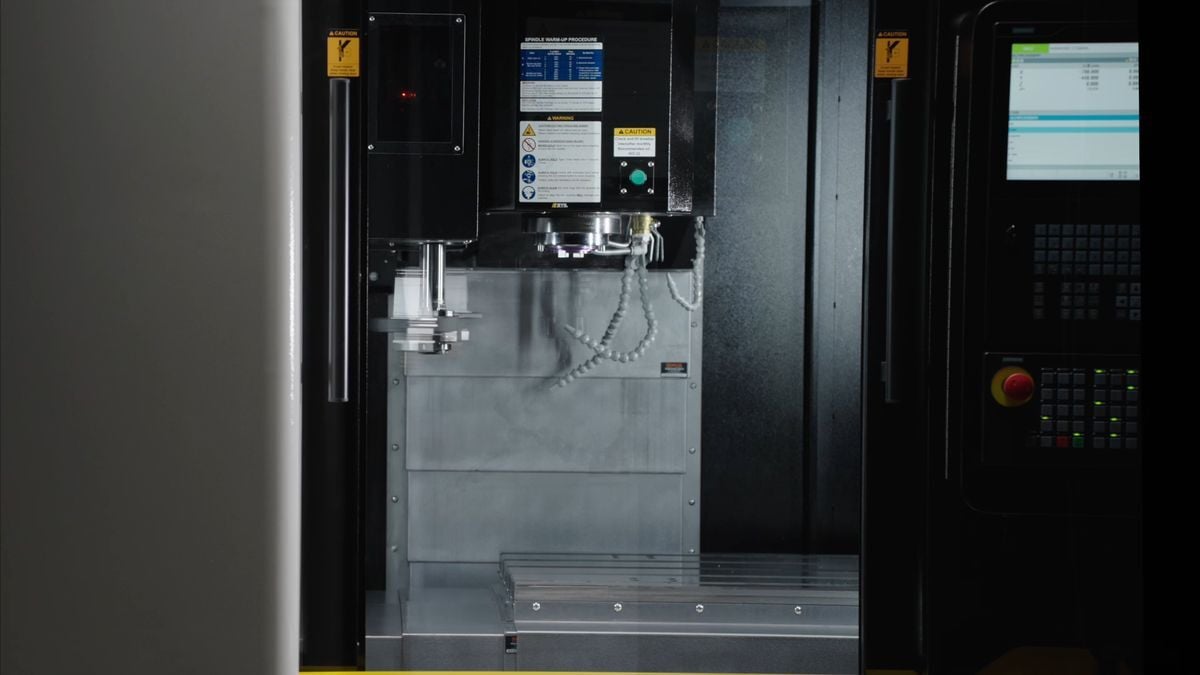

Travel
Longitudinal Travel X: 760 mm
Cross Travel Y: 500 mm
Headstock Travel Z: 500 mm
Distance between spindle end and tabletop: 100-600 mm
Distance between spindle centre and column surface: 530 mm

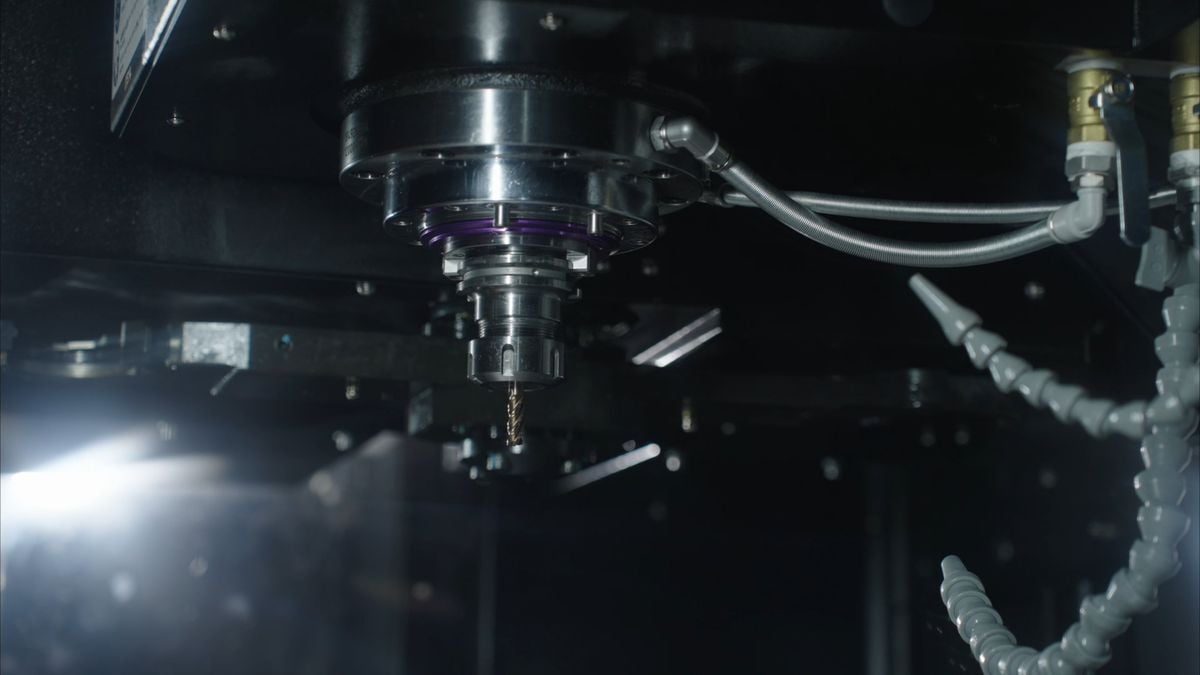

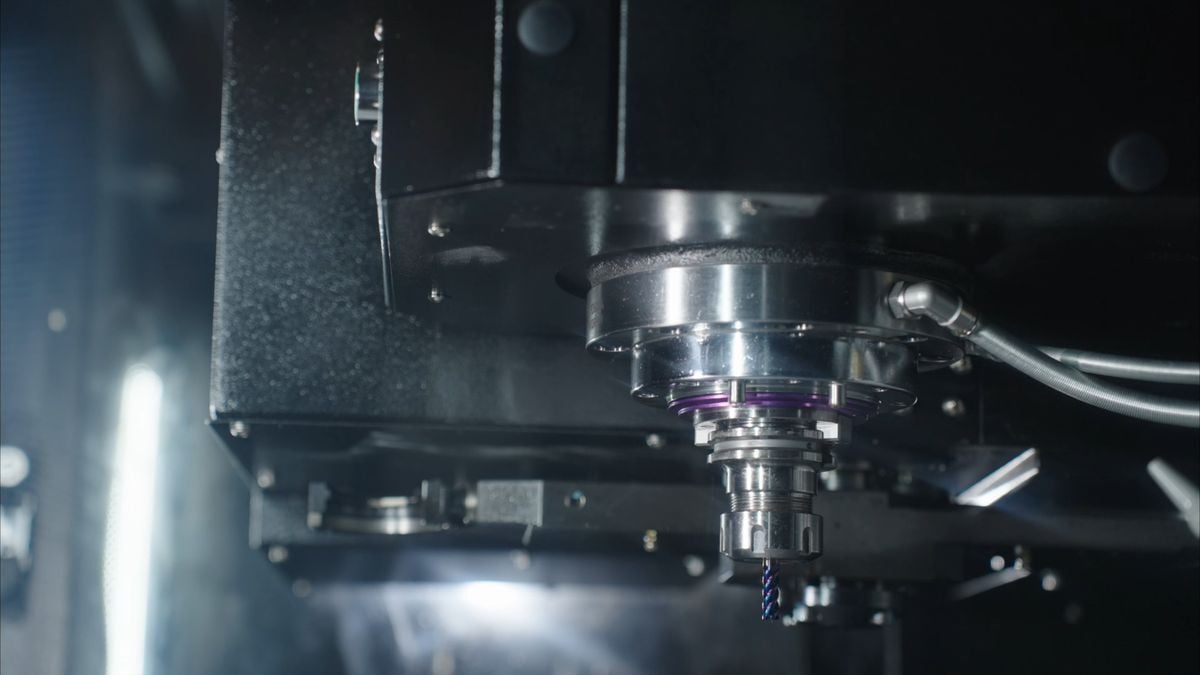

Spindle
Spindle nose: BT40
Spindle speeds: 12,000 rpm
Mechanism of Transmission: Belt Type/Direct type

Feed
Cutting feed: 10,000 mm/min
Rapid traverse: 30,000 mm/min

Auto Tool Changer
Tool holder: Arm type
Tool storage Capacity: 24 pcs
Max. tool diameter: 150 mm
Max. tool length: 240 mm
Max. tool weight: 7 kg
Tool to Tool: 2.0 s

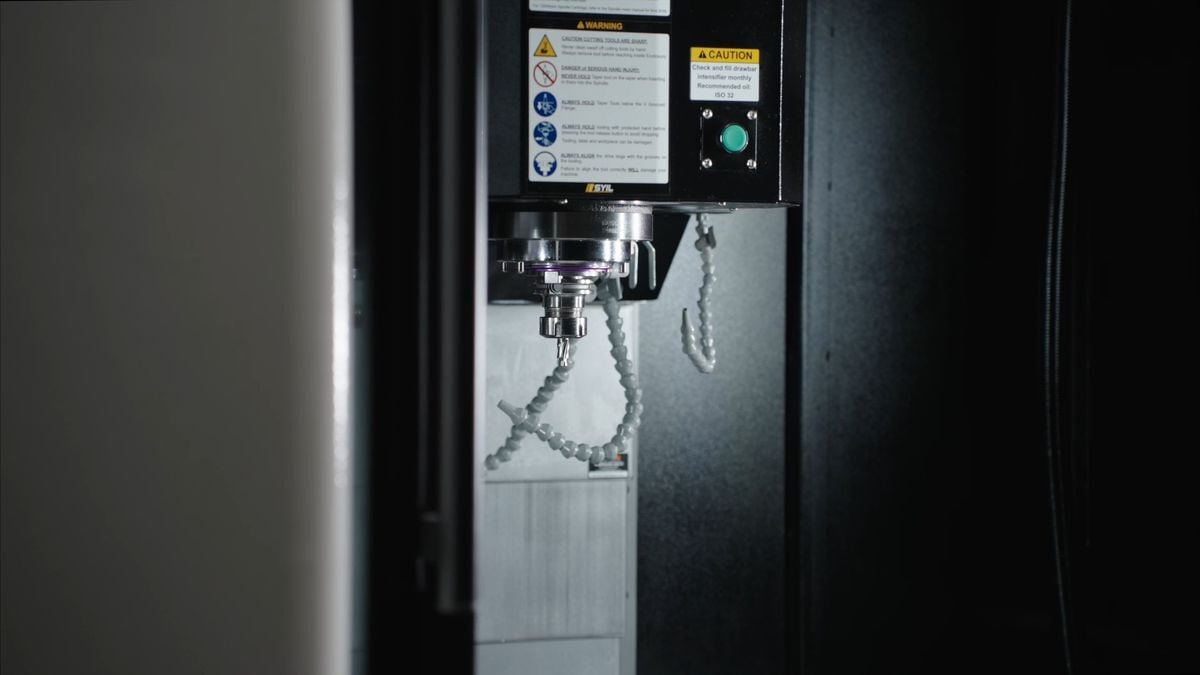

Motors
Syntec
Spindle motor output：11/17 kW
Drive motors X, Y, Z-Axis: 3.9/3.9/5.9 kW
Power source: AC380V/ 3-Phase
Power: 25 kVA

General
Floor space (LxWxH): 1850x2245x2800 mm
Weight: 6000 kg
REQUEST A QUOTE
SYIL x Siemens
The SYIL X9 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
REQUEST A QUOTE
X9 Vertical Milling Machine
Excellent Machining Capabilities. Handling a Full Range of Operations.
Start your journey of discovery below.
