Schneeberger

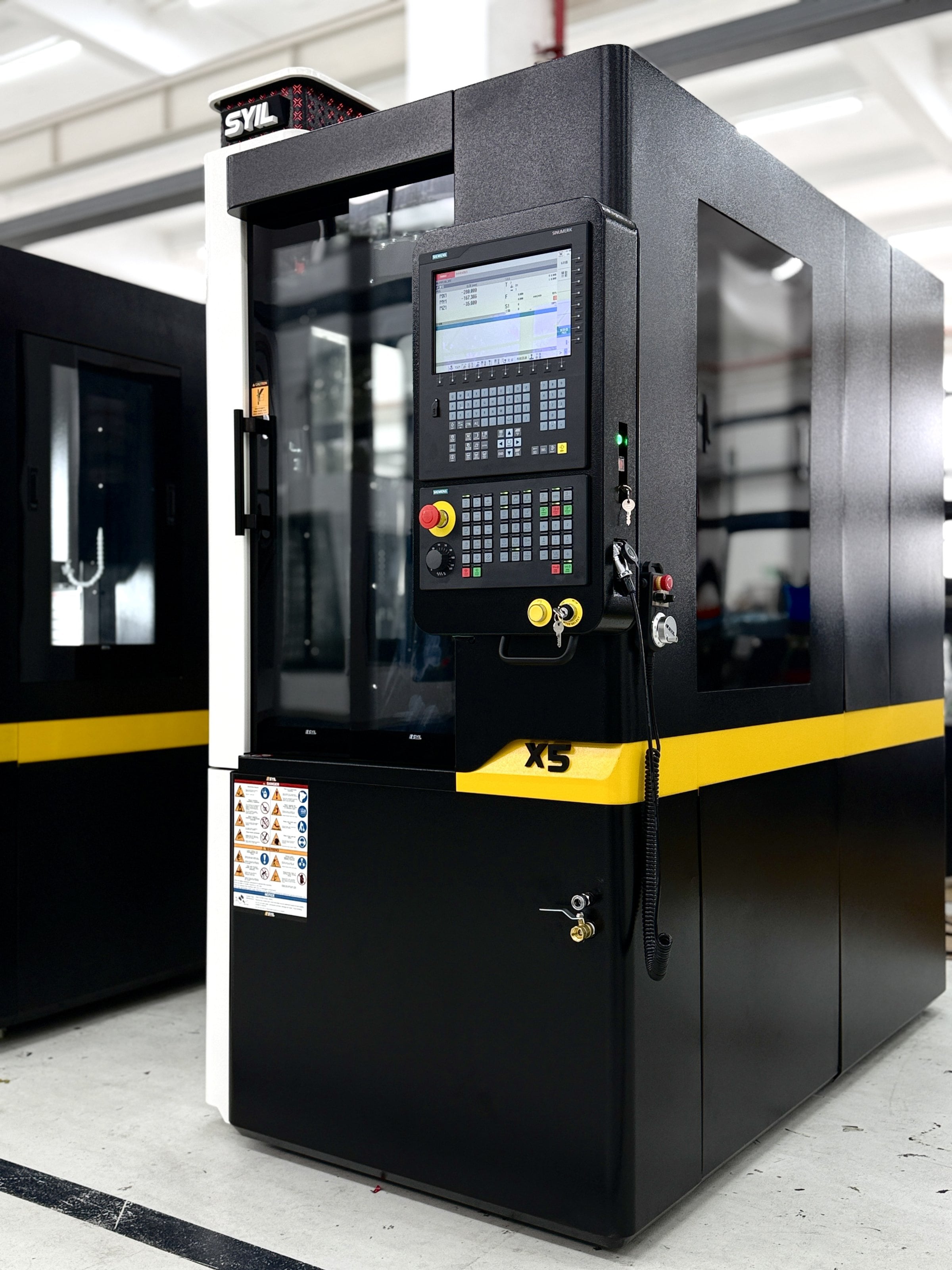

Mineral casting machine frame - the gold standard in rigidity and thermal stability weighing in at a impressive 2180kg for a machine only a meter wide!
Travel
X travel
300 mm
Y travel
260 mm
Z travel
300 mm
Distance between spindle end and tabletop
150-450 mm
Distance between spindle and column surface
330 mm

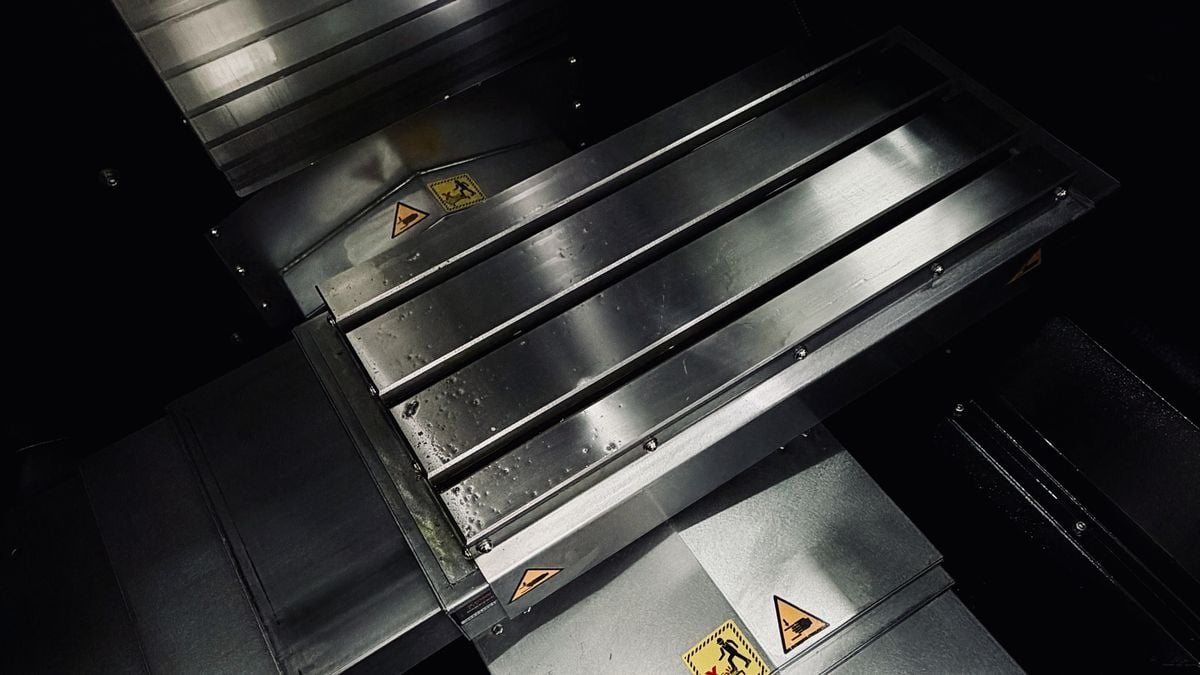

Table
Table size
560×260 mm
T-slots (number×size×distance)
80 mm
Max. table load
150 kg

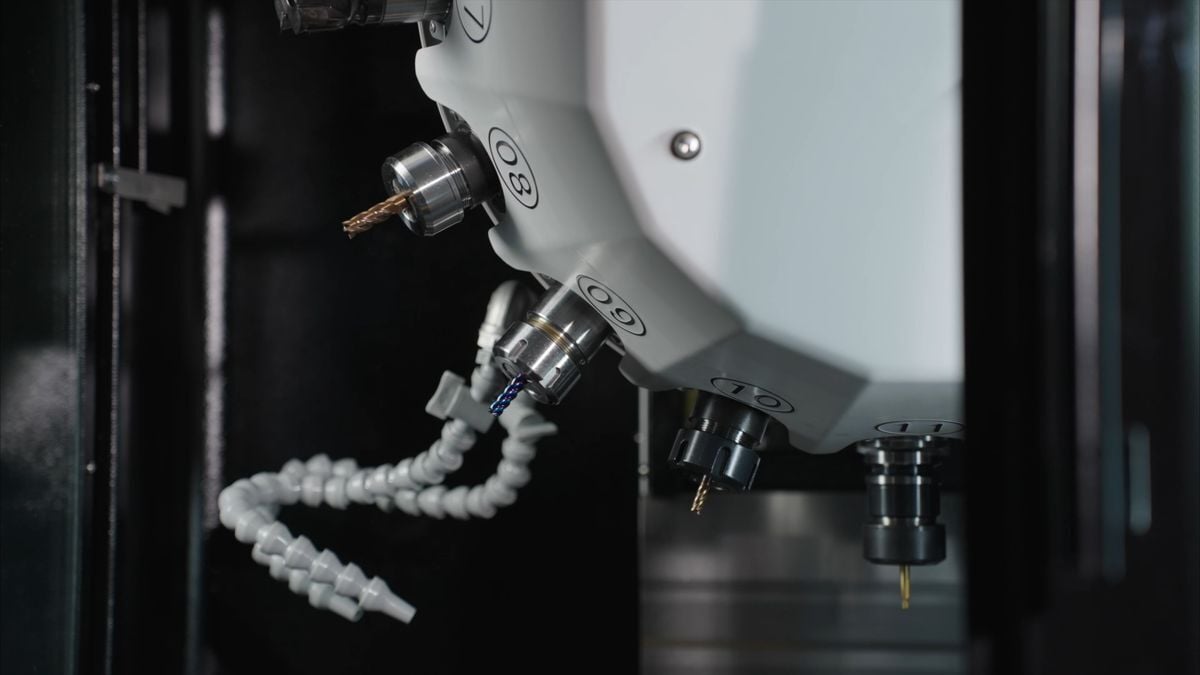

Spindle
Spindle nose
BT30
Spindle speeds
20,000 rpm
Mechanism of transmission
Direct
Feed
Cutting feed
10,000 mm/min
Rapid traverse
30,000 mm/min

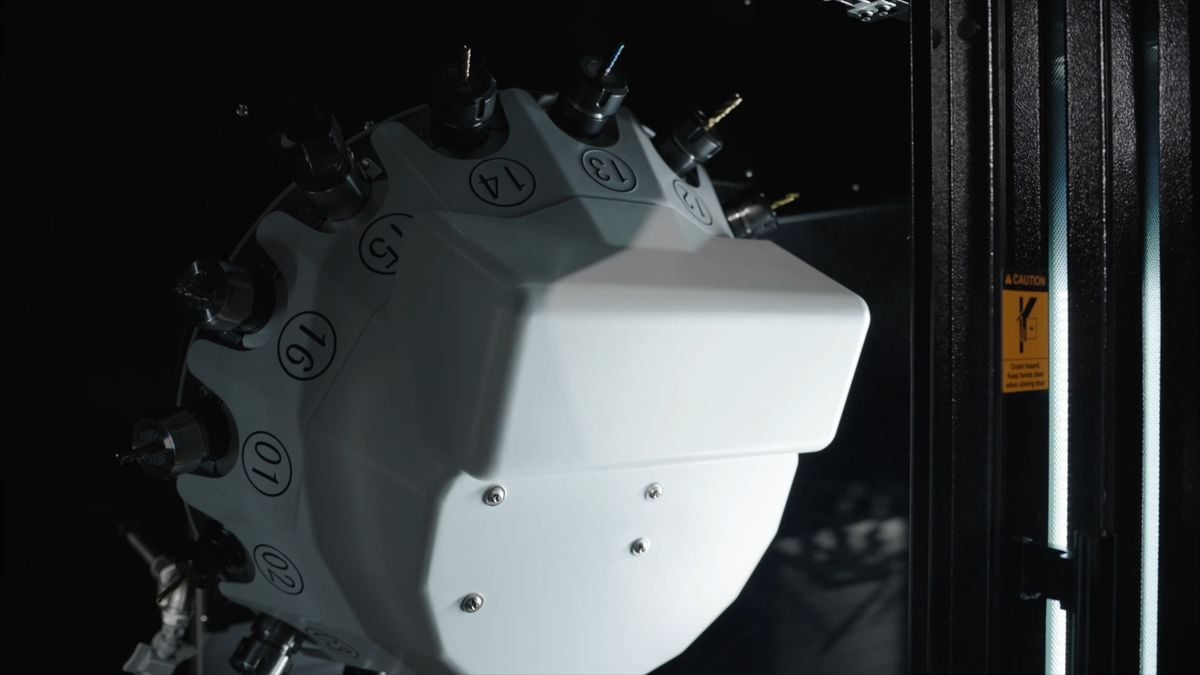

Auto Tool Changer
Tool type
Wheel
Tool storage capacity
16 positions
Max. tool diameter
63 mm
Max. tool length
200 mm
Max. tool weight
3 kg
Tool to Tool
1 s

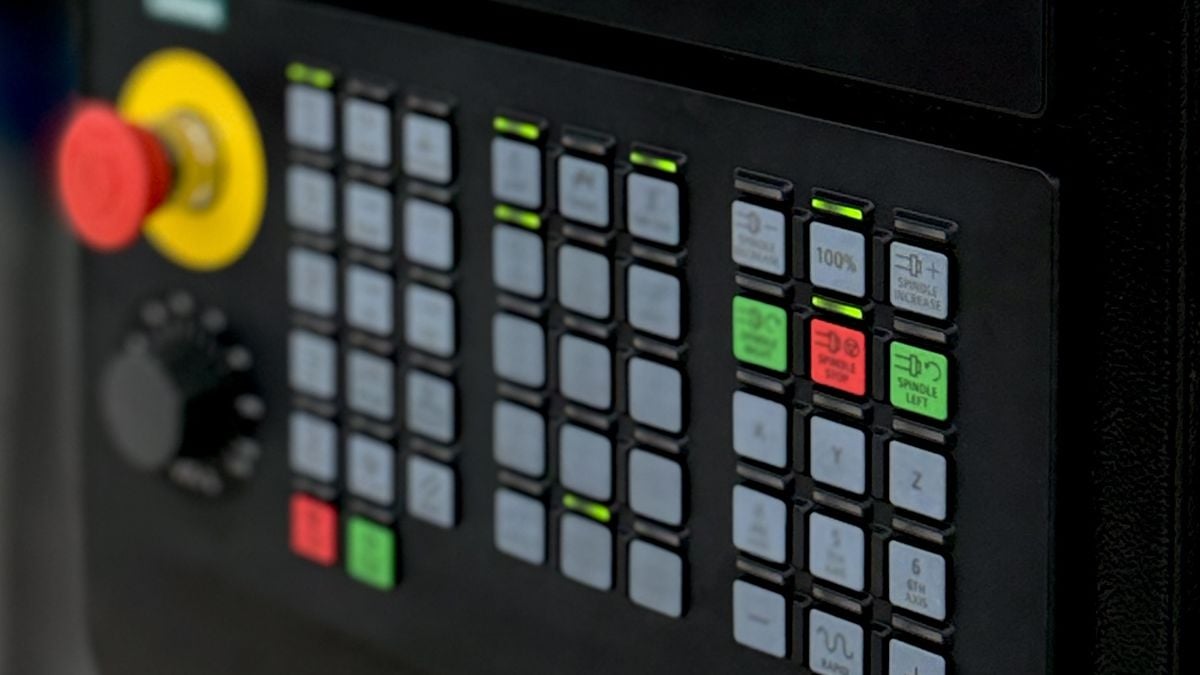

Power - Siemens
Spindle motor output(Rate/Max)
4.8 kW
Drive motors(X,Y,Z)
1/2.2/3.5 kW
Power Source
AC380V/ 3-Phase
Power
12 kVA

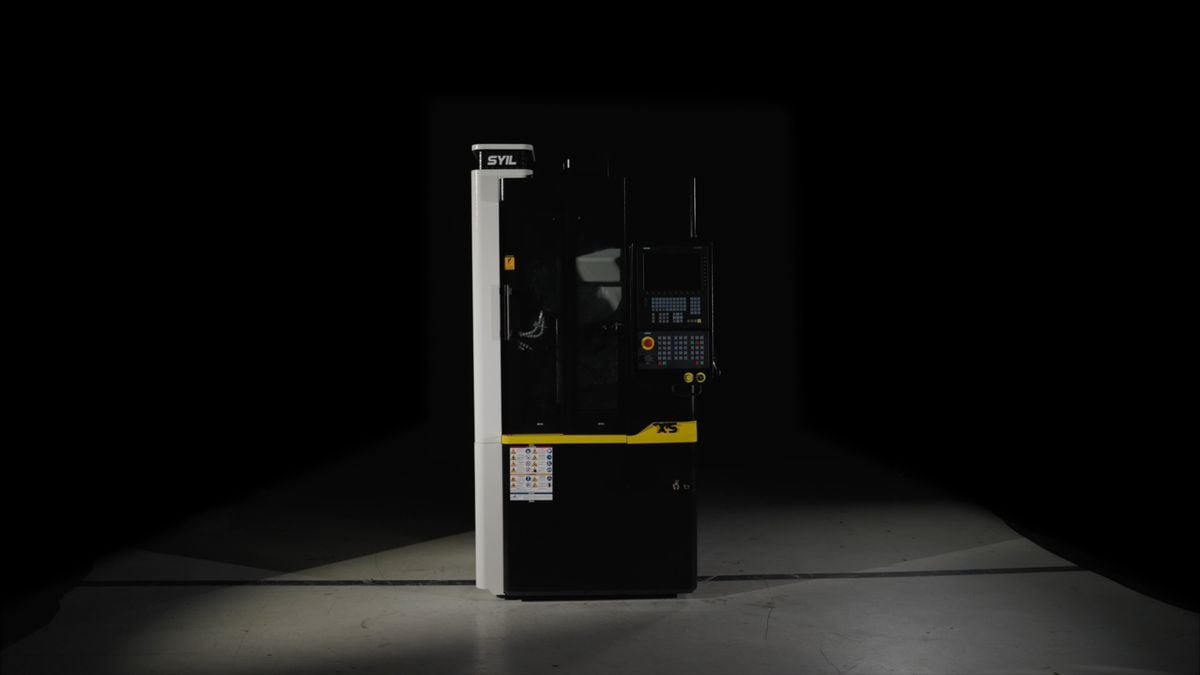

Machine Size and Weight
Floor size (L×W×H)
2020×1000×2360 mm
Drive motors(X,Y,Z)
1/2.2/3.5 kW
Power Source
AC380V/ 3-Phase
Power
12 kVA
Space Saving, Money Making.
The Modular style of the SYIL X5 easily lends itself to have an additional 4th axis rotary table installed. Some customers opt for this to give them the ultimate edge in productivity, allowing them to reduce setups and compete when bidding for those bigger contracts and higher volume work!
THK Japan

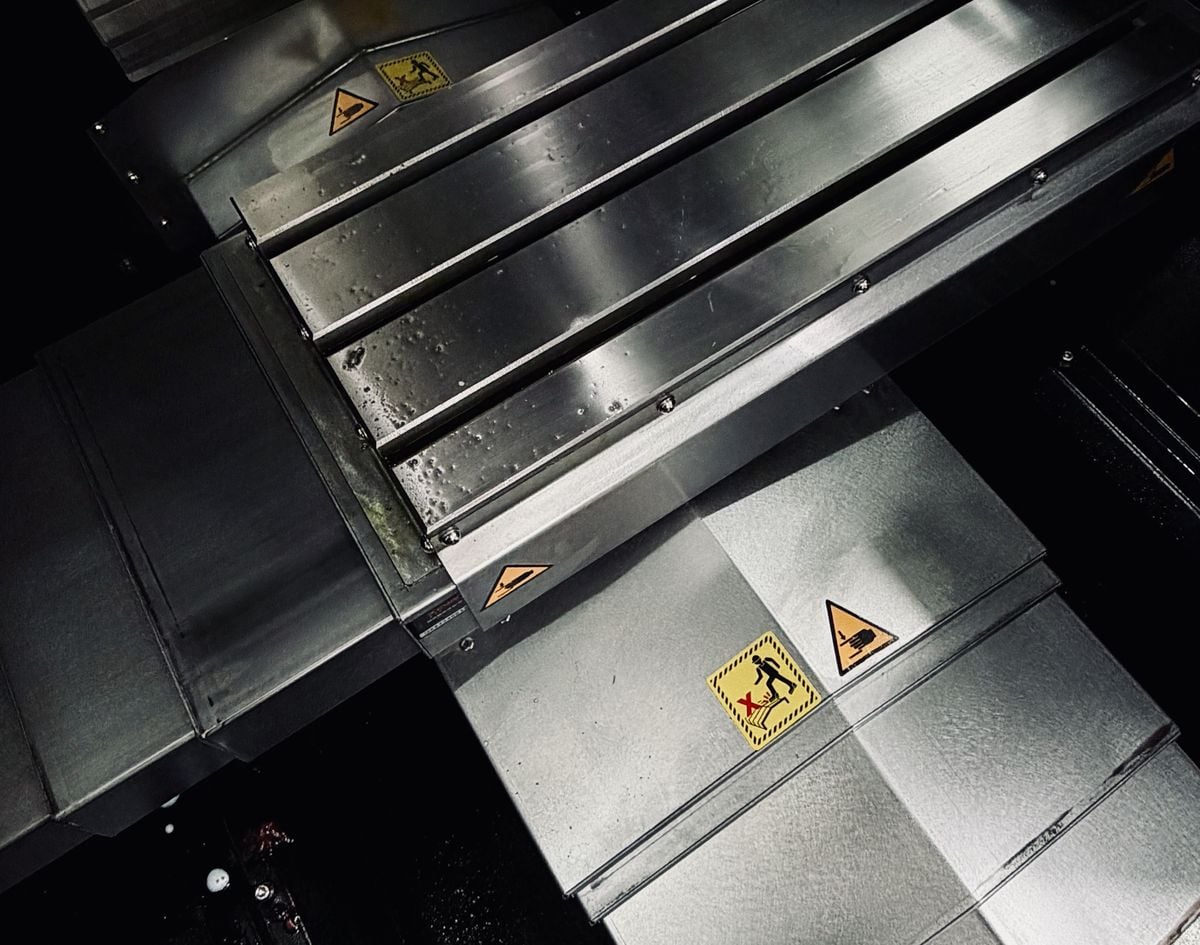

Japanese High-precision ball screws and linear guides direct from THK.

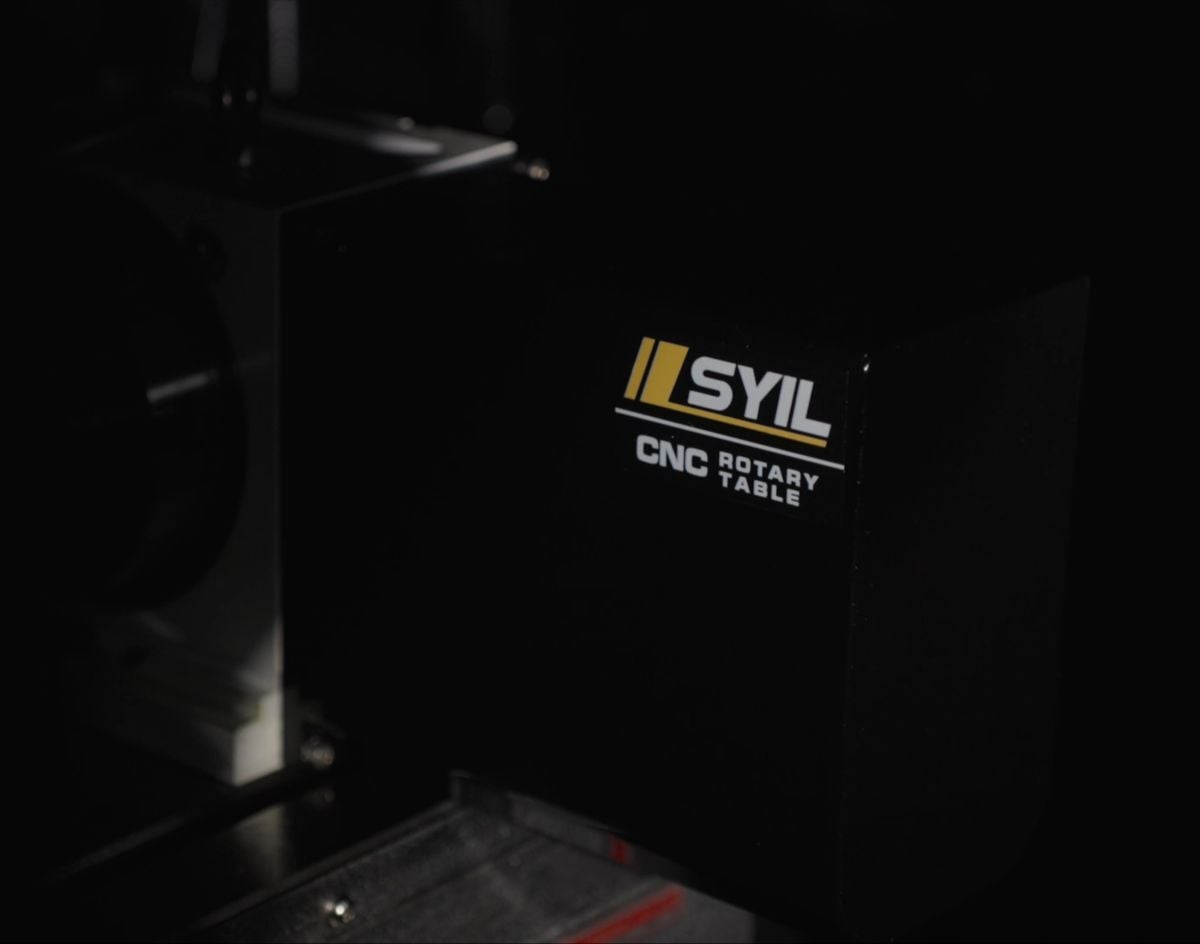

High Precision 125mm 4th Axis (Option)
Increase your productivity with a 4th axis rotary.

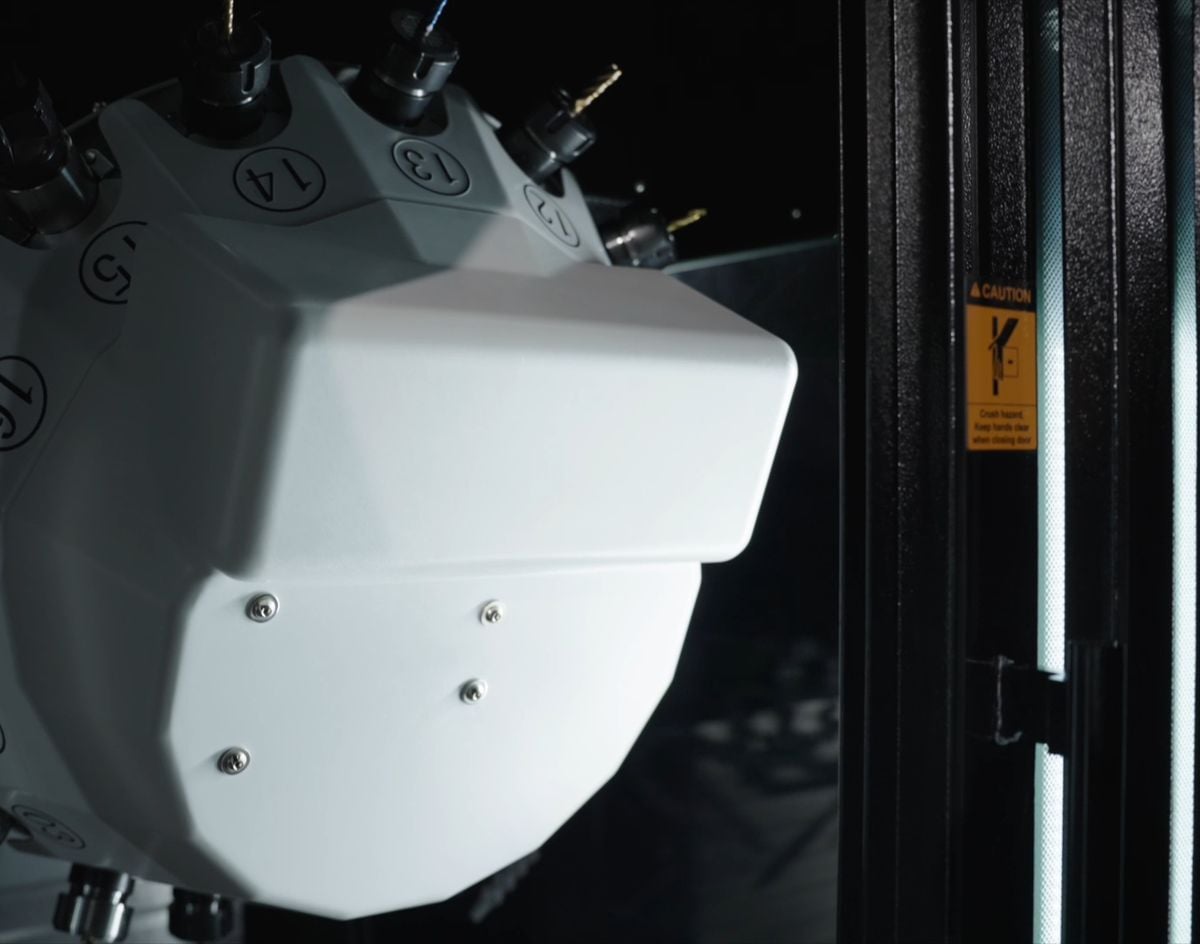

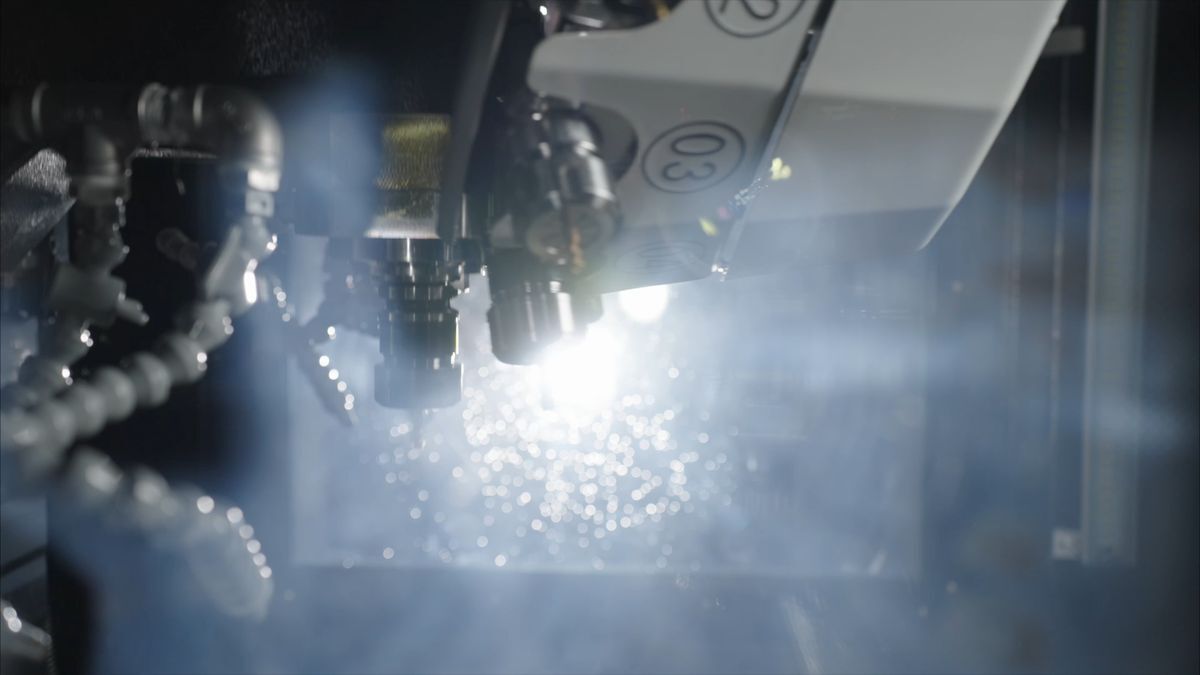

High-speed Servo Tool Changer
16 Units BT30 as standard with 20,000rpm for the ultimate in surface speeds. Team this with the incredibly fast rapid speeds and you've got a pocket rocket of a machine tool!
SYIL X5 Options
125mm.
for 125mm NC Rotary Table.
Extraction Unit S200.
Wireless type.
Cable type TTC200.
Technical Specifications
X5
X7
X9
Table
Table size (mm)
560×260
700×300
860×500
Table load (kg)
150
150
500
Table surface (number×size×distance in mm)
T-slots 3×14×80
T-slots 3×14×100
T-slots 5×18×100
Travel distances
X-axis (mm)
300
400
760
Y-axis (mm)
260
300
500
Z-axis (mm)
300
380
500
Distance from spindle nose to table top
150-450
150-530
100-600
Distance between spindle and column surface
330
358
530
Spindle
Spindle taper
BT30
BT30
BT40
Power-drive
Direct
Belt
Belt
Max. spindle speed (rpm)
20,000
12,000
10,000 (12,000 optional)
Feed
Rapid traverse (mm / min)
30,000
30,000
30,000
Cutting feed (mm / min)
10,000
10,000
10,000
Automatic tool changer
Type
Wheel
Arm
Arm
Tool holder
BT30
BT30
BT40
Tool storage capacity
16
16
24
Max. tool diameter (mm)
63
63
125
Max. tool length (mm)
200
200
240
Max. tool weight (kg)
3
3
7
Tool to tool (s)
1
1.5
2
Other data
Machine weight (kg)
2180
2200
5000
Machine dimensions L x W x H (mm)
Footprint including coolant tank and controller
Footprint including coolant tank and controller
2020×1000×2360
1800×1600×2250
1850×2245×2800
Min/max air pressure (MPa (psi))
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
Coolant tank capacity (Liters)
80
80
130
